Escher's Ants as Metaphor: Topological Marching for the Well-Composed, Genus Zero Crowd
logo

Please use this identifier to cite or link to this publication: http://hdl.handle.net/10380/3234

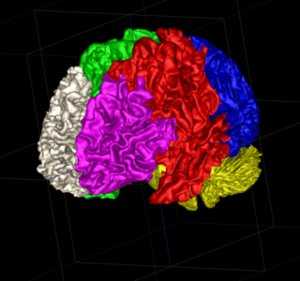

Topological considerations for segmentation results are important for such applications as proper brain segmentation from digital image data. We present an enhancement of the FastMarchingImageFilter which allows for topologically constrained evolution of the level set. Identical to the original functionality of the FastMarchingImageFilter, the evolution of the level set of a single or multiple genus zero, well-composed seed objects proceeds according to the specified parameters. With our proposed enhancements, the user can either choose to prevent the level set from merging with itself such that the original topology of the initial seed object(s) is not violated or that no handles are created during the evolution process. However, in contrast to earlier approaches which relied on the concept of the simple point implicitly requiring the definition of a user-specified foreground/background connectivity, we use the related, but more restrictive concept of well-composed sets to topologically constrain the evolution of the level set. Utility of our submission is demonstrated on both 2-D and 3-D brain images. Note that this submission is a companion piece to a more theoretical discussion of our work given in [9]
Code
plus Automatic Testing Results by Insight-Journal Dashboard on Tue Nov 30 22:49:00 2010 for revision #1
starstarstarstarstar expertise: 5 sensitivity: 5

Reviews
There is no review at this time. Be the first to review this publication!

Quick Comments


Resources
backyellow
Download All
Download Paper , View Paper
Download Source code
Github

Statistics more
backyellow
Global rating: starstarstarstarstar
Review rating: starstarstarstarstar [review]
Code rating: starstarstarstarstar
Paper Quality: plus minus

Information more
backyellow
Categories: Level sets, Region growing, Segmentation
Keywords: digital topology, well-composedness
Toolkits: ITK
